Bio Compression SC-4004-DL I Lymphedema Compression Pump

Package Includes:

• Sequential Circulator pump
• Power cord
• Blocker bar
• Instructions for use

SC-4004-DL Features and Benefits:

This sequential circulator pump offers the following features:

• 4 Chamber System: Allows targeted compression therapy with separate chambers for each section of the limb, ensuring even pressure distribution.
• Unilateral or Bilateral Capability: Can treat one limb (unilateral) or both limbs (bilateral) simultaneously, offering flexibility based on the patient’s needs.
• Touch Screen LCD: User friendly interface for controlling settings and monitoring therapy progress.
• Adjustable Pressure in All Chambers: Allowing customized treatment, this chamber pump provides the ability to adjust the compression pressure in each chamber between 10 mmHg and 120 mmHg in all chambers.
• Adjustable Cycle Time: For personalized therapy sessions, the compression duration can be modified 60 and 120 seconds.
• Countdown Timer or Continuous Mode: Allows the user to choose between a preset session time or continuous compression for extended use.
• Focus Therapy: Doubling the inflation time, this therapy focuses compression on specific areas for targeted treatment, enhancing effectiveness in addressing localized issues.
• Pause Button: Provides the option to pause the therapy at any time during a session, adding convenience and control.
• Compliance Meter: Records the patient’s usage and adherence to the prescribed therapy, helping therapists monitor treatment consistency.

How to Use SC-4004-DL:

Please reference the instructions manual before using this biocompression sequential circulator.

Unpacking & Setup

1. Unbox the pump and accessories (pump, power cord, instruction guide, blocker bar).
2. Place the pump on a flat surface near a reclining chair, bed, or sofa.
3. Attach the power cord and plug it into an outlet.

Connecting Garments

1. If treating one limb, leave the blocker bar in place; remove it for two-limb treatment.
2. Use the Quick Connect system to attach garment tubes, aligning chamber numbers.
3. Wear light, loose-fitting clothing under compression sleeves.

Wearing the Garments

1. Leg Garments: Unzip, place heel at the bottom, pull up using straps, and zip.

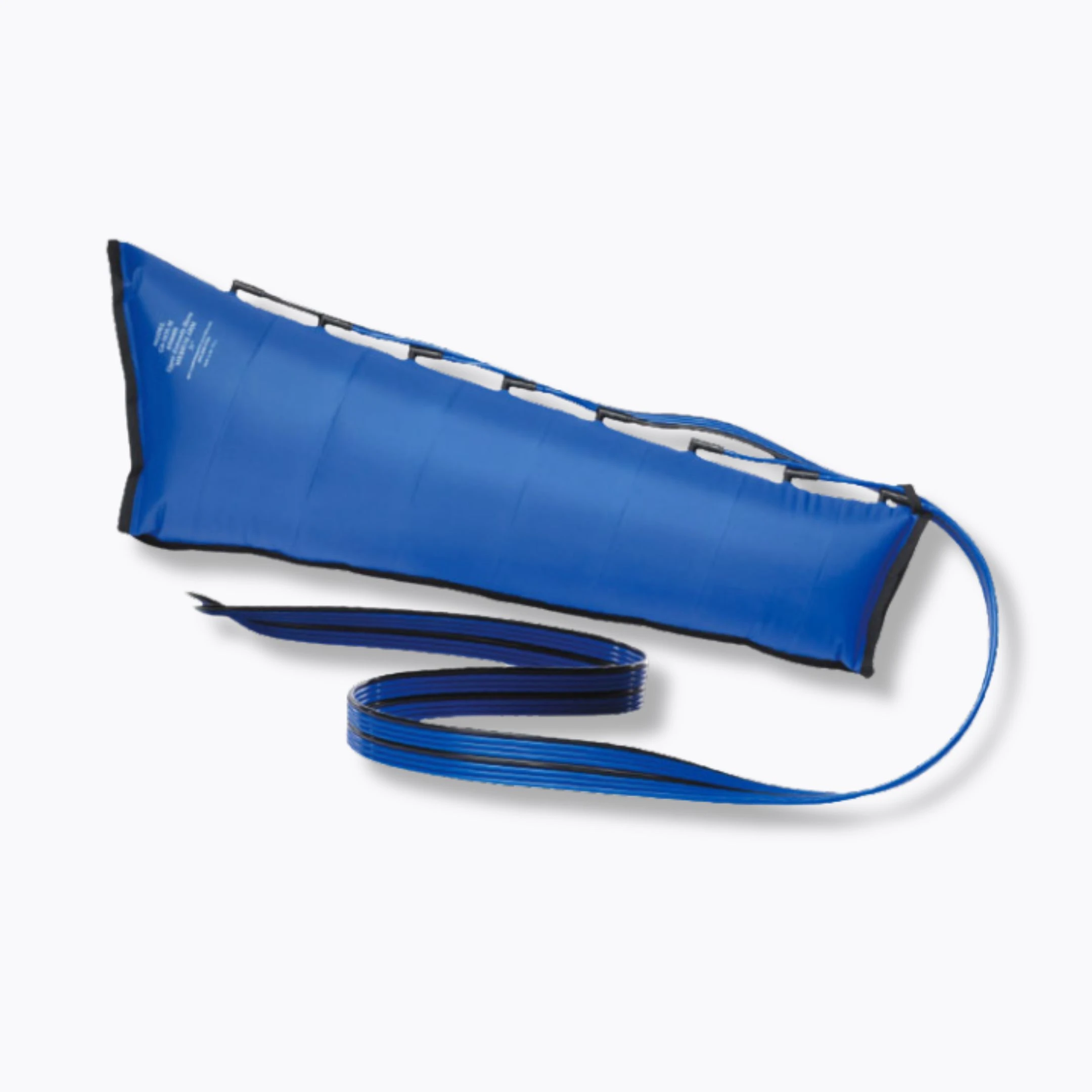

2. Arm Garments: Slide arm through sleeve until fingers rest comfortably inside.

Adjusting Pump Settings

• Touch the screen to wake it.
• Hold the bottom right corner for 3 seconds to access setup.
• Adjust pressure, cycle time, and treatment duration as needed.
• Enable or disable focus therapy on specific chambers.
• Review settings and press “Done” to finalize.

Starting & Pausing Treatment

1. Sit comfortably with legs elevated.
2. Touch the screen and press “Start” to begin treatment.
3. To pause, press “Pause”—the pump will deflate.
4. Resume by touching the screen again.

Ending Treatment

• For timed treatment, the pump turns off automatically.
• In continuous mode, press “Stop” to deflate the sleeve.
• To speed up deflation, bend your limb before unzipping the garment.

Additional Features

• For viewing treatment compliance: Holding the bottom center of the screen for 5 seconds.
• To Reset to factory settings: Hold the bottom right corner for 3 seconds.

Disclaimer: This device is intended for use as prescribed by a healthcare professional. Results may vary based on individual conditions. The supplier is not responsible for improper use or failure to follow medical advice.
